Geocells

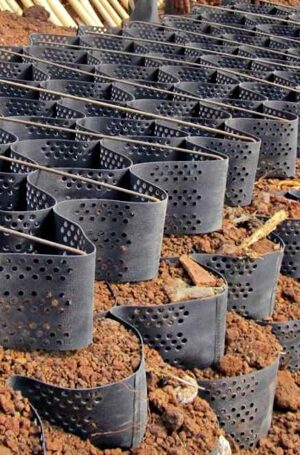

HDPE Geocell is a lightweight and flexible three-dimensional, expandable panels made from high-density polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration. HDPE Geocell System can be filled with a wide range of material: aggregate, concrete, sand, soil, etc.





Applications：

• Erosion Control
• Load Support
• Slope Protection
• Channel Protection
• Retaining Wall

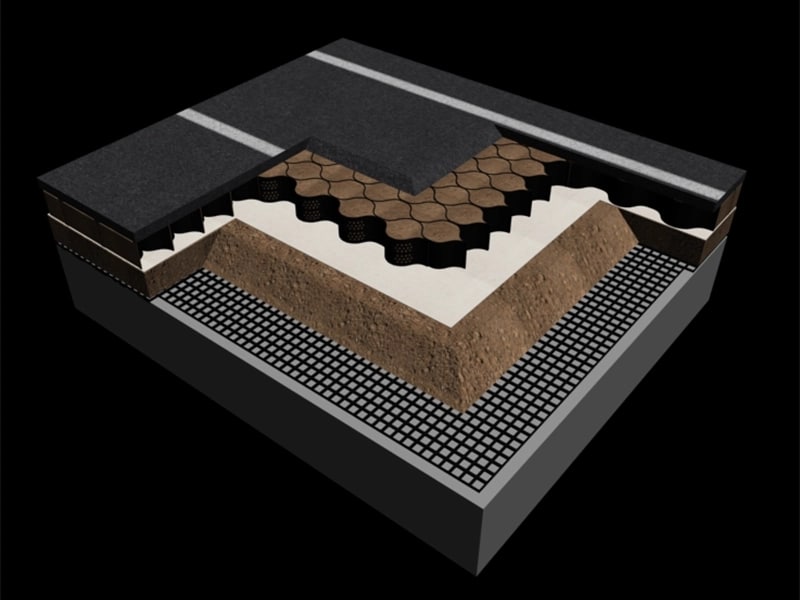

• Ground Stabilization







Specification

C07 Series -height 70mm

Index Properties Test Method Unit C70-356 C70-445 C70-711  Polymer – – HDPE HDPE HDPE  Carbon Black content ASTM D 1603 % ≥1.5 ≥1.5 ≥1.5  Density ASTM D 1505 g/cm3 ≥0.94 ≥0.94 ≥0.94  Sheet Thickness ASTM D 5199 mm 1.50 1.50 1.50  Seam Peel Strength – N 1100 1100 1100  Weld Spacing – mm 356 445 711  Cell Depth – mm 75 75 75

C10 Series – height 100mm

Index Properties Test Method Unit C100-356 C100–445 C100-711  Polymer – – HDPE HDPE HDPE  Carbon Black content ASTM D 1603 % ≥1.5 ≥1.5 ≥1.5  Density ASTM D 1505 g/cm3 ≥0.94 ≥0.94 ≥0.94  Sheet Thickness ASTM D 5199 mm 1.50 1.50 1.50  Seam Peel Strength – N 1480 1480 1480  Weld Spacing – mm 356 445 711  Cell Depth – mm 100 100 100

C15 Series-height 150mm

Index Properties Test Method Unit C150-356 C150440 C150-711  Polymer – – HDPE HDPE HDPE  Carbon Black content ASTM D 1603 % ≥1.5 ≥1.5 ≥1.5  Density ASTM D 1505 g/cm3 ≥0.94 ≥0.94 ≥0.94  Sheet Thickness ASTM D 5199 mm 1.50 1.50 1.50  Seam Peel Strength – N 2200 2200 2200  Weld Spacing – mm 356 445 711  Cell Depth – mm 150 150 150

C20 Series-height 200mm

Index Properties Test Method Unit C200-356 C200–445 C200–711  Polymer – – HDPE HDPE HDPE  Carbon Black content ASTM D 1603 % ≥1.5 ≥1.5 ≥1.5  Density ASTM D 1505 g/cm3 ≥0.94 ≥0.94 ≥0.94  Sheet Thickness ASTM D 5199 mm 1.50 1.50 1.50  Seam Peel Strength – N 3000 3000 3000  Weld Spacing – mm 356 445 711  Cell Depth – mm 200 200 200

Note: Cell depth can be from 75mm to 200mm,Welding Space can be from 300mm to 1000mm.
